| Quantity: | |
|---|---|
ZR 75 VSD FF
Atlas Copco
8414809090
| Place Of Origin | Wuxi City,Jiangsu Province |
| Video Factory Inspection | Video Factory Inspection |
| Machinery Test Report | Provided |
| Minimum Order Quantity | 1 |
| Packaging Details | Neutral Packaging Or Customized According To Customer Requirements |
Type | Working pressure(1) | Free Air Delivery(2) | Installed motor power | Installed motor power | ||||
| bar(e) | psig | l/s | m³/min | cfm | kW/hp | dB(A) | ||
| ZR75 VSD+-10.4 | Minimum | 4 | 60 | 78.2-243 | 4.7-14.6 | 166-514 | 75/100 | 66 |
| Effective | 7 | 100 | 78.8-230 | 4.7-13.8 | 167-487 | |||
| Maximum | 10.4 | 150 | 77.6-185 | 4.7-11.1 | 164-392 | |||

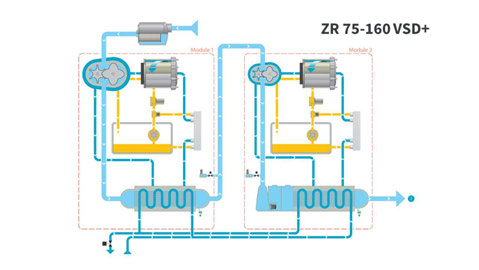

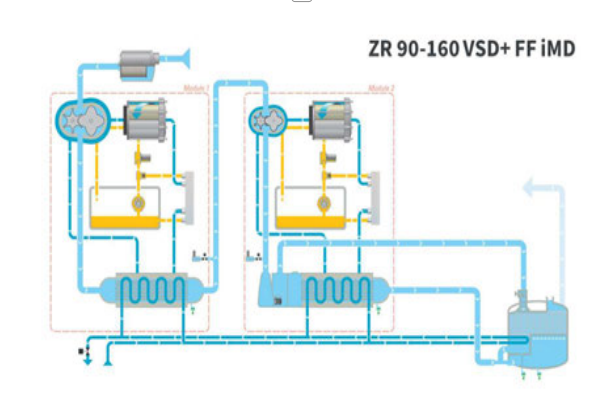

Flowchart
Advantage
1.Highest reliability
For over 60 years Atlas Copco has pioneered thed evelopment of oil-free air technology. Resulting in thelargest range of air compressors and blowers within ourindustry, Through continuous research and development.we achieved a new milestone, setting the standard for airpu rity as the first manufacturer to be awarded lS0 8573-1CLASS 0 certification. CLASS0 certification means zero risk of oil contamination from our products.
2.100% oil-free compressed air
The IS0 8573-1 CLASS 0 certification means, zero risk ofour products contaminating the compressed air. This means we won't damage your company's hard-won professional reputation due to oil contamination from ouroil-free produ cts.
3.Maximum energy efficiency
The ZR/ZT's superior oil-free screw elements provide the optimum combination of high Free Air Delivery (FAD) with the lowest energy consumption.Ample sized cooling, lowpressure drops and an extremely efficient drive train resultin the highest compressor package efficiency.
4.Global presence - local service
Our aftermarket product portfolio is designed to add maximum value for our customers by ensuring the optimum availability and reliability of their compressed air equipment with the lowest possible operating costs.We deliver this complete service guarantee through our extensive service organization, maintaining our positionas leader in compressed air.
