| Quantity: | |
|---|---|

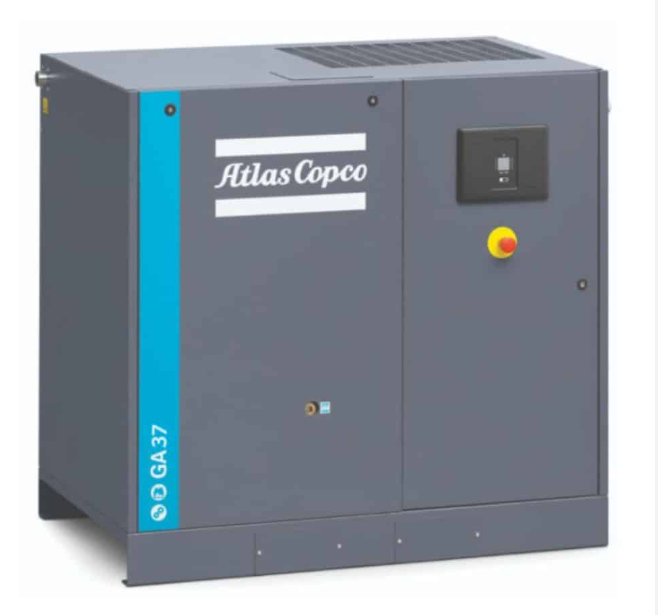

GA37
Atlas Copco
8414809090
| Place Of Origin | Wuxi City,Jiangsu Province |
| Video Factory Inspection | Video Factory Inspection |
| Machinery Test Report | Provided |
| Minimum Order Quantity | 1 |
| Packaging Details | Neutral Packaging Or Customized According To Customer Requirements |
Compressor type | Max.working | Capacity FAD* | Noise level | Weight | |||
| bar(e) | l/s | m3/min | cfm | dB(A) | kg | lb | |
| 50HZ | |||||||
GA37 | 7.5 | 116 | 418 | 246 | 67 | 683 | 1506 |
| 8.5 | 108 | 389 | 229 | 67 | 683 | 1506 | |
| 10 | 100 | 360 | 212 | 67 | 683 | 1506 | |
| 13 | 88 | 317 | 186 | 67 | 683 | 1506 | |
| 60HZ | |||||||
GA37 | 7.4 | 117 | 421 | 248 | 67 | 698 | 1539 |
| 9.1 | 107 | 385 | 227 | 67 | 698 | 1539 | |
| 10.8 | 98 | 353 | 208 | 67 | 698 | 1539 | |
| 12.5 | 93 | 335 | 197 | 67 | 698 | 1539 | |
Advantage
1.Maintenance-free drive system
·100% maintenance-free;totally enclosed andprotected against dirt and dust
·Suitable for harsh environments
·High-efficiency drive arrangement;no coupling orslippage losses.
·Standard up to 46'C/115'F and for highambientversion 55*C/131'F.
2.IE3/NEMA Premium Efficiencyelectrical motors
.lP55, insulation Class F, B rise.
.Non-drive side bearing greased for life.
.Oil-lubricated drive side bearings.
.Designed for continuous operation in harsh environments.
3.Robust spin-on oil filter
.High-efficiency; removes 300% smaller particlesthan a conventional filter.
.Integrated bypass valve with the oil filter.
4.Separate oversized oil cooler and aftercooler
.Low element outlet temperatures,ensuring longoil lifetime.
.Removal of nearly 100% of condensate byintegrated mechanical separator.
.No consumables.
.Eliminates possibility of thermal shocks in coolers.
5.Heavy-duty air intake filter
.Protects the compressor components by removing99.9% of dirt particles down to 3 microns.
.Differential inlet pressure for proactive maintenance while minimizing pressure drop.
