| Quantity: | |
|---|---|

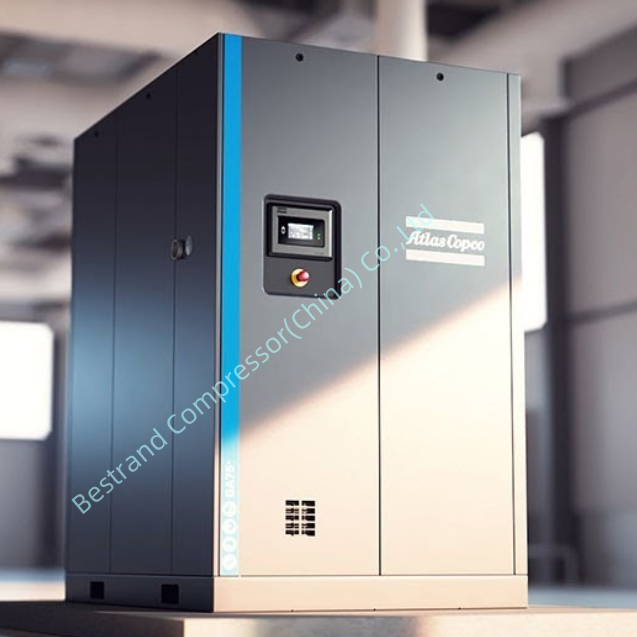

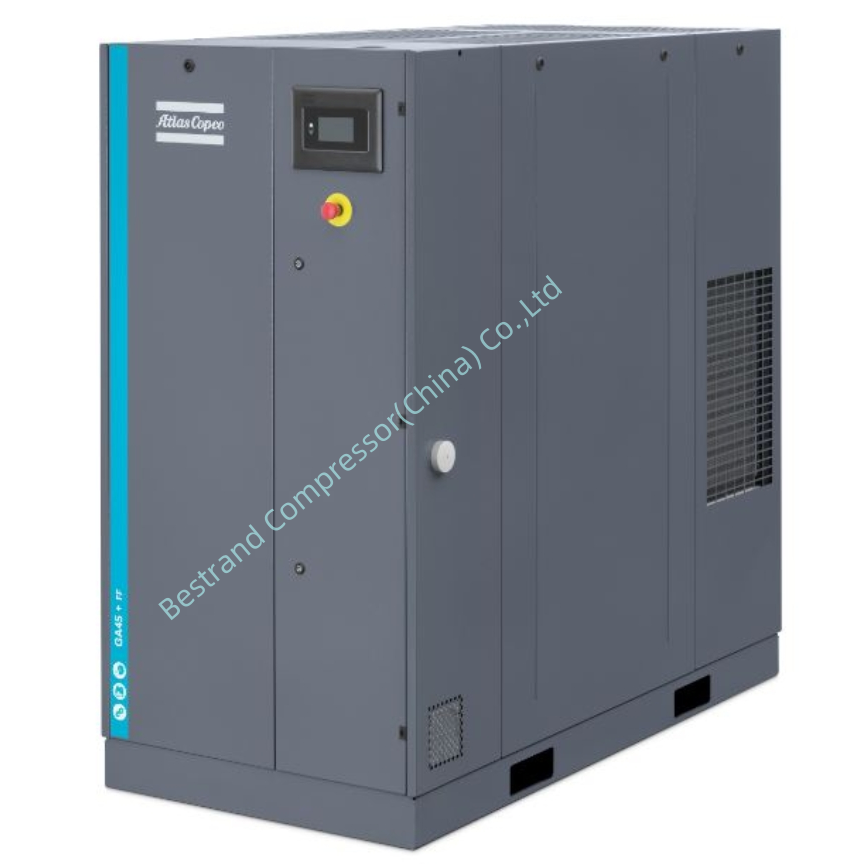

GA 45+
Atlas Copco
8414809090
| Place Of Origin | Wuxi City,Jiangsu Province |
| Video Factory Inspection | Video Factory Inspection |
| Machinery Test Report | Provided |
| Minimum Order Quantity | 1 |
| Packaging Details | Neutral Packaging Or Customized According To Customer Requirements |
Compressor type | Max.working | Capacity FAD* | Noise level | Weight | |||
| bar(e) | l/s | m3/min | cfm | dB(A) | kg | lb | |
GA45+ | 7.5 | 150 | 539 | 317 | 68 | 808 | 1781 |
| 8.5 | 144 | 519 | 305 | 68 | 808 | 1781 | |
| 10 | 131 | 473 | 278 | 68 | 808 | 1781 | |
| 13 | 106 | 380 | 224 | 68 | 808 | 1781 | |
Advantage

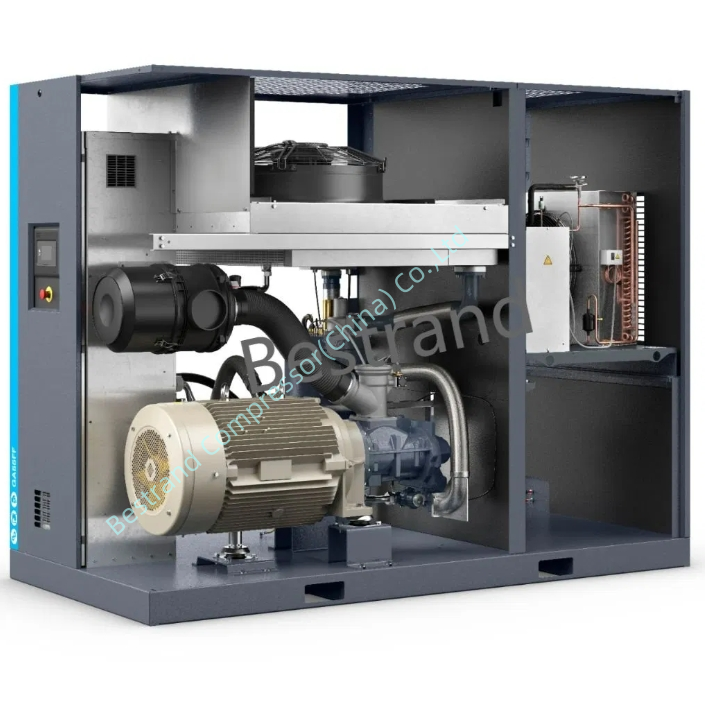

1.Maintenance-free drive system
·100% maintenance-free;totally enclosed andprotected against dirt and dust
·Suitable for harsh environments
·High-efficiency drive arrangement;no coupling orslippage losses.
·Standard up to 46'C/115'F and for highambientversion 55*C/131'F.
2.IE3/NEMA Premium Efficiencyelectrical motors
.lP55, insulation Class F, B rise.
.Non-drive side bearing greased for life.
.Oil-lubricated drive side bearings.
.Designed for continuous operation in harsh environments.
3.Robust spin-on oil filter
.High-efficiency; removes 300% smaller particlesthan a conventional filter.
.Integrated bypass valve with the oil filter.
4.Separate oversized oil cooler and aftercooler
.Low element outlet temperatures,ensuring longoil lifetime.
.Removal of nearly 100% of condensate byintegrated mechanical separator.
.No consumables.
.Eliminates possibility of thermal shocks in coolers.
5.Heavy-duty air intake filter
.Protects the compressor components by removing99.9% of dirt particles down to 3 microns.
.Differential inlet pressure for proactive maintenance while minimizing pressure drop.
