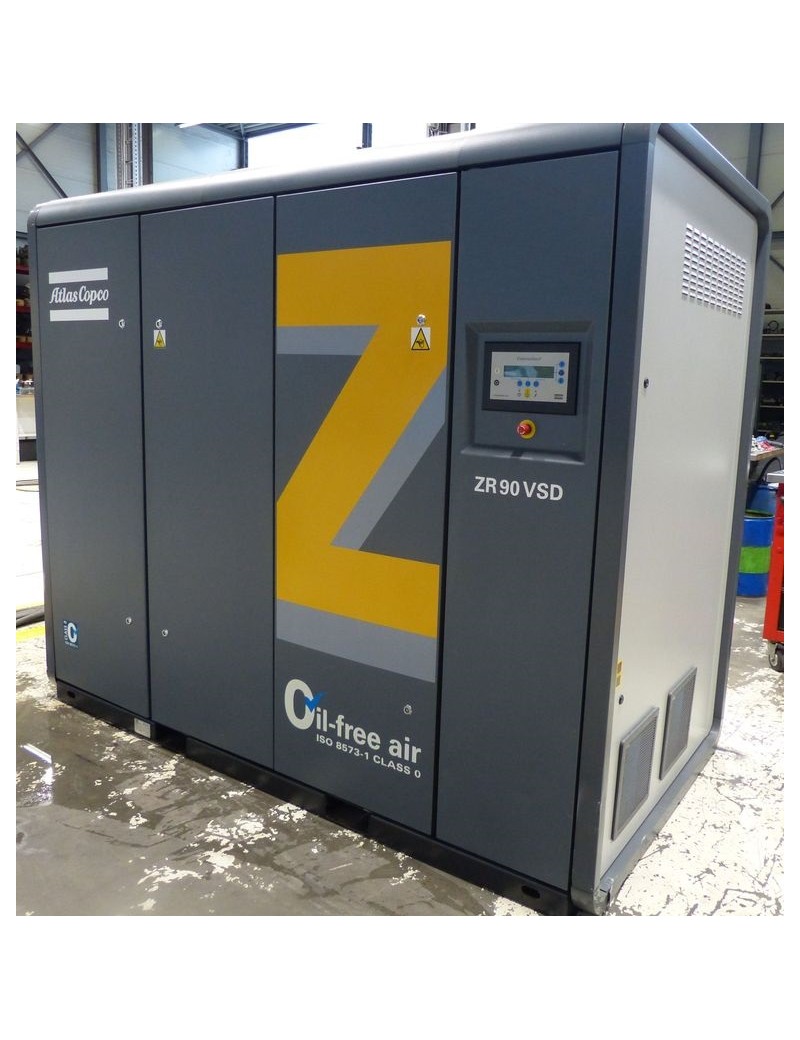

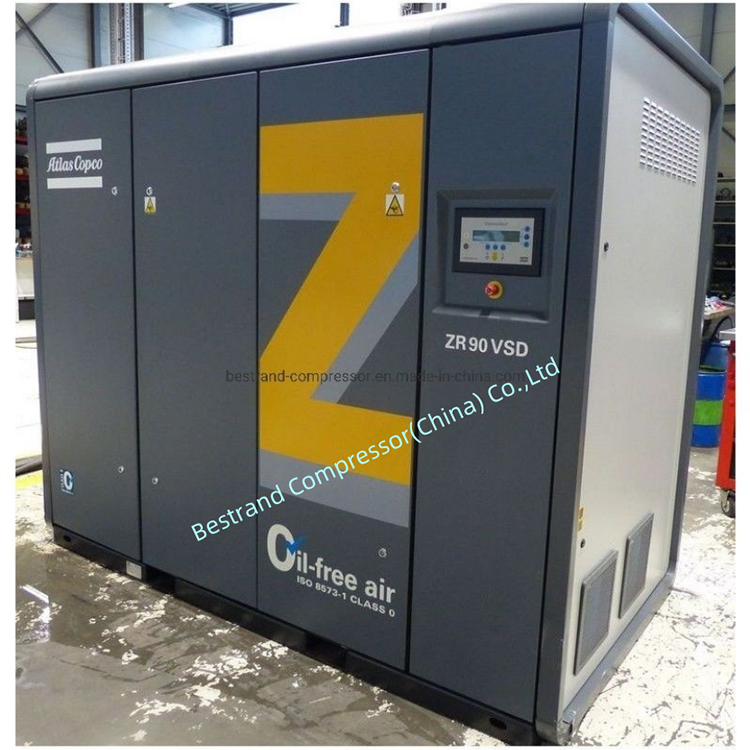

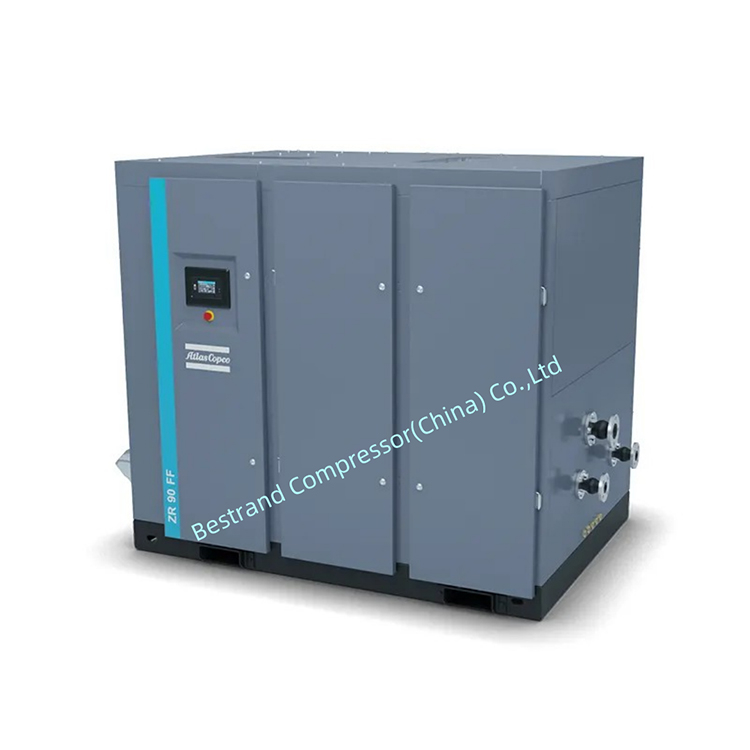

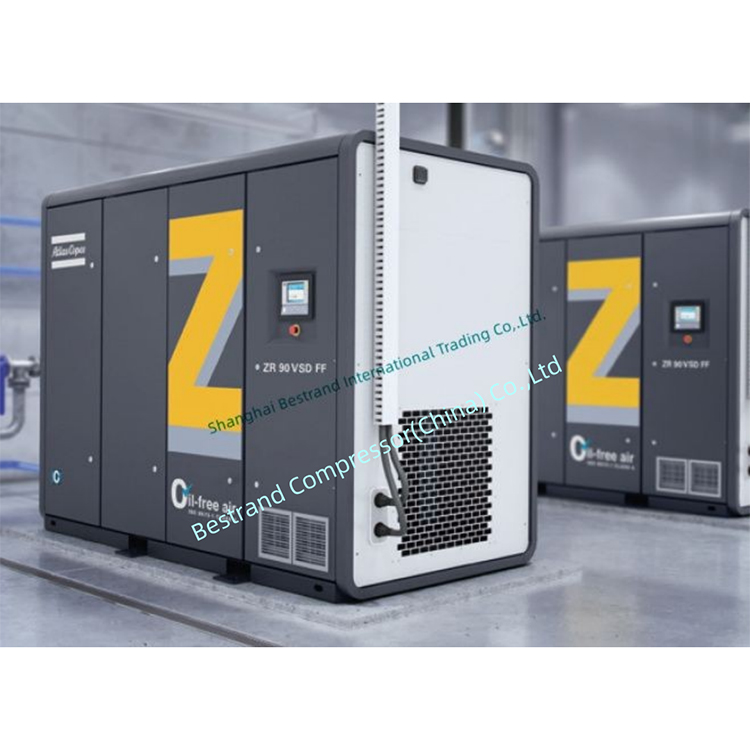

Atlas Copco Oil Free Air Compressor ZR 90 VSD

The shortest route to superior productivity is to minimize operationalcost while maintaining an uninterrupted supply of the right quality ofair. The Atlas Copco Z compressor series is focused on effectivelysaving energy, ensuring product safety- only oil-free machinesexclude contamination risks for 100%-and guaranteeing the utmostreliability around the clock. And not just today, but day after day, yearafter year, with minimal maintenance cost, few service interventionsand long overhaul intervals.

Availability:

Quantity:



Inquire Add to Basket

Model:
ZR 90 VSD
Brand:
Atlas Copco

Product Description

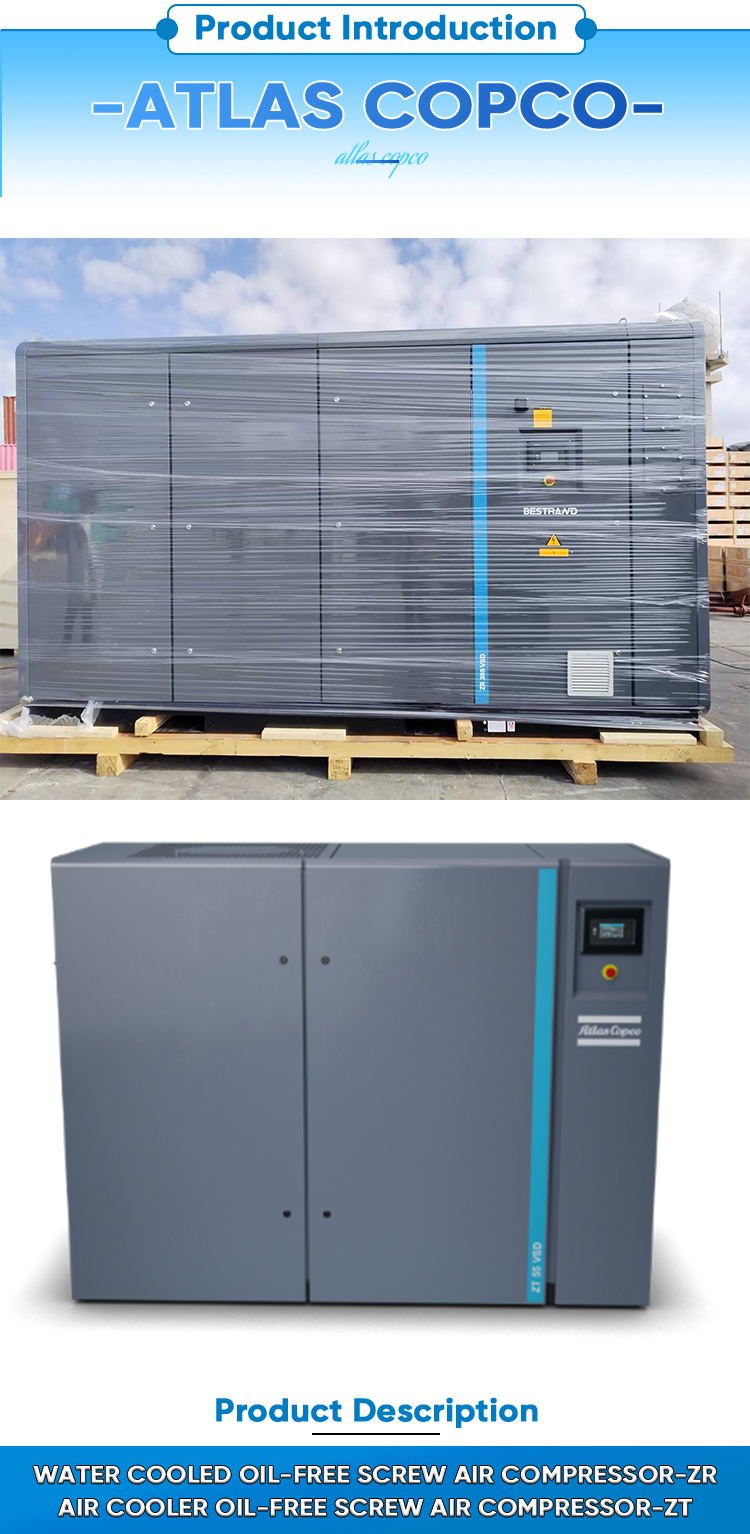

oil-free-air-compressor_01_01 oil-free-air-compressor_03

The shortest route to superior productivity is to minimize operationalcost while maintaining an uninterrupted supply of the right quality ofair. The Atlas Copco Z compressor series is focused on effectivelysaving energy, ensuring product safety- only oil-free machinesexclude contamination risks for 100%-and guaranteeing the utmostreliability around the clock. And not just today, but day after day, yearafter year, with minimal maintenance cost, few service intervention-sand long overhaul intervals.

Type	Working pressure(1)			Free Air Delivery(2)			Installed motor power	Noise level(3)
		bar(e)	psig	l/s	m³/min	cfm	kW/hp	dB(A)
		bar(e)	psig	l/s	m³/min	cfm	kW/hp	dB(A)
ZR75 VSD+10.4	Minimum	4	60	78.2-243	4.7-14.6	166-514	75/100	66
	Effective	7	100	78.8-230	4.7-13.8	167-487
	Maximum	10.4	150	77.6-185	4.7-11.1	164-392
ZR90 VSD+-10.4	Minimum	4	60	78.2-298	4.7-17.9	166-632	90/120	66
	Effective	7	100	78.8-284	4.7-17.0	167-602
	Maximum	10.4	150	77.6-232	4.7-13.9	164-492
ZR110 VSD+-10.4	Minimum	4	60	78.2-345	4.7-20.7	166-732	110/150	68
	Effective	7	100	78.8-330	4.7-19.8	167-700
	Maximum	10.4	150	77.6-276	4.7-16.6	164-586
ZR132VSD+-10.4	Minimum	4	60	78.2-399	4.7-24.0	166-846	132/175	69
	Effective	7	100	78.8-384	4.7-23.0	167-814
	Maximum	10.4	150	77.6-329	4.7-19.8	164-698
ZR145VSD+10.4	Minimum	4	60	78.2-431	4.7-25.8	166-912	145/200	70
	Effective	7	100	78.8-415	4.7-24.9	167-880
	Maximum	10.4	150	77.6-361	4.7-21.6	164-764
ZR160 VSD+-10.4	Minimum	4	60	78.2-452	4.7-27.1	166-957	160/215	70
	Effective	7	100	78.8-452	4.7-27.1	167-958
	Maximum	10.4	150	77.6-396	4.7-23.8	164-839

oil-free-air-compressor_05

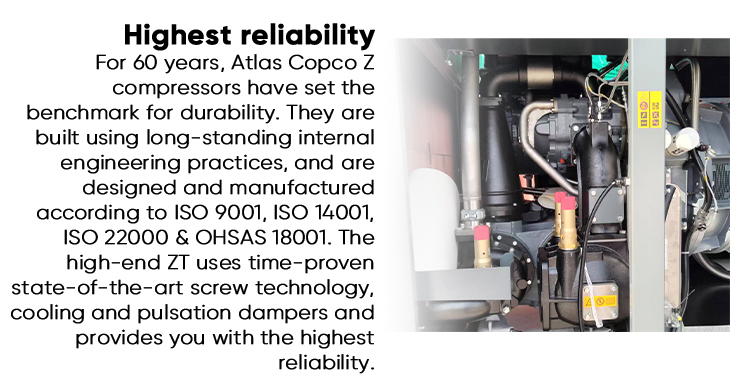

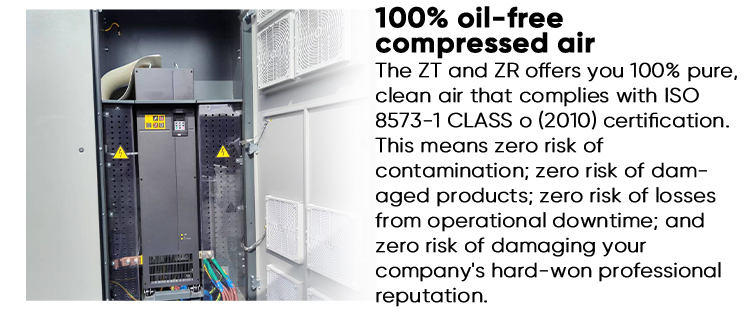

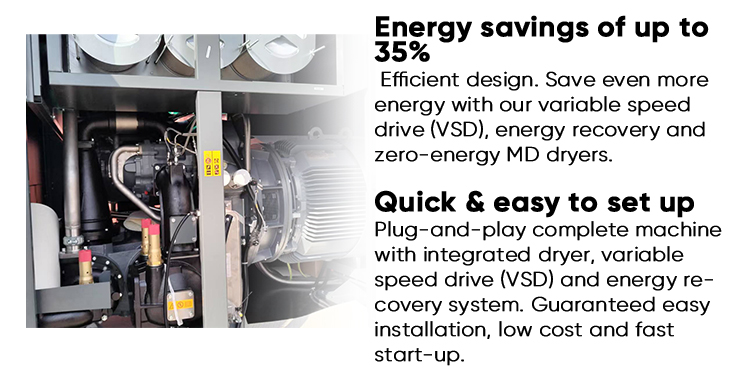

oil-free-air-compressor_06 oil-free-air-compressor_07 oil-free-air-compressor_08

oil-free-air-compressor_09

oil-free screw air compressor are widely used in various fields such as medical, chemical engineering, scientifc research, environmental protection, etc., and have been applied extensively, signifcantly enhancing operational efficiency, safety and flexibility.

Here, we will elaborate on their core applications by industry classification.

oil-free-air-compressor_11

1_02

Bestrand is an expert in industrial air compressors, after treatment, Drill ing machine and related spare parts. Bestrand has two business divisions,one is Bestrand Mechanical Technology which has a big plant and manufacture its own brand compressed air system with high qual- ity and competitive price, the other one is Bestrand Internationl Trad- ing which mainly export other brand such as Atlas Copco,Epiroc,Inger- soll Rand, Fusheng, Airman etc.

Bestrand has been marketing industrial compressed air equipment to global market since 2000 and the main assembling plant covers more than 20000 square meters. Until now Bestrand has supplied more than 35000 compressors to over 105 countries. The scope of supply starts from the smallest compressors used by individuals to very large compressors used in heavy industrial applications.Bestrand devote itself to supply advanced, highly reliable and easy mainte- nance air compressors to all our customers. We use our experience and knowledge to provide the best air compressor solution for your business.

1_04

1. who are we?

Bestrand are based in Shanghai, China, start from 2015.We manufacture a wide range of air compressors and cooperate with many popular brands.

2. how can we guarantee quality?

Always final Inspection before shipment; Always 2 years guarantee for machine.

Always 5 years guarantee for motor,engine and air end.

3.what can you buy from us?

Air Compressor,drilling rig,Air dryer,Air filter,air compressor parts

4. why should you buy from us not from other suppliers?

Bestrand is a professional manufacturer of industrial air compressors and after treatment equipments with its own intellectual property rights. The main production base is located in Shanghai, China. In Germany, Bestrand seted up an advanced R&D center.

5. what services can we provide?

Air compressor system customization,installation solution,heat recovery-,condensate management

Accepted Delivery Terms: FOB,CFR,CPD,CIF,DDU,DDP

Accepted Payment Type:T/T,L/C; Western Union,Paypal Language Spoken: English

1_06
