Atlas Copco Oil-Free air compressor ZT 90

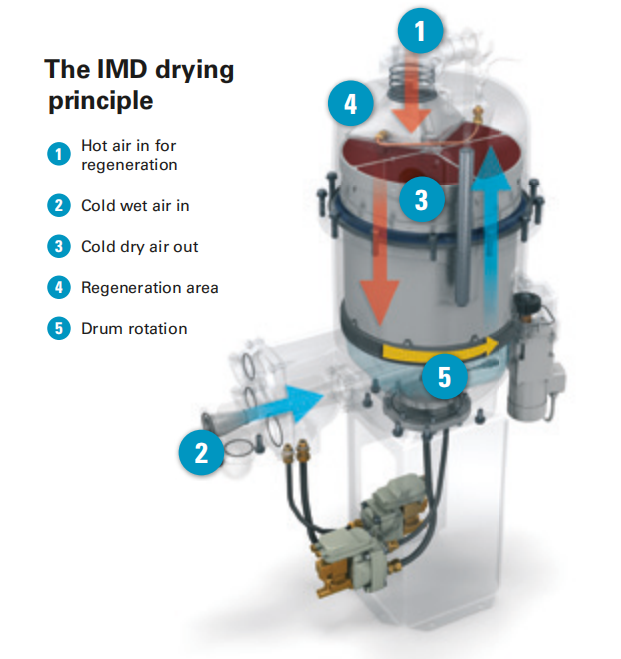

ZR/ZT compressor includes internal piping.coolers, motor, lubrication and control system. The even integrates an iMD oriMDGadsorption dryer .Installation is fault-free, commissioning time is low and noextemal instrument air is required. You simply plug andrun.

Availability:

Quantity:



Inquire Add to Basket

Model:
ZT 90
Brand:
Atlas Copco
Code:
8414809090

Product Description

Place Of Origin	Wuxi City,Jiangsu Province
Video Factory Inspection	Video Factory Inspection
Machinery Test Report	Provided
Minimum Order Quantity	1
Packaging Details	Neutral Packaging Or Customized According To Customer Requirements

Type	Free air delivery			Installed motor		Noise level	Weight
Type	l/s	m³/min	cfm	kW	hp	dB(A)	kg	lb
50Hz
ZT 90-7.5	236.0	14.2	500	90	120	76	2650	5842
ZT 90-8.6	223.3	13.4	473	90	120	76	2650	5842
ZT 90-8.6 HAT	211.4	12.7	448	90	120	76	2650	5842
ZT 90-10	211.3	12.7	448	90	120	76	2650	5842
60Hz
ZT 90-7.25	261.3	15.7	554	90	120	76	2650	5842
ZT 90-8.6 HAT	226.9	13.6	481	90	120	76	2650	5842
ZT 90-9	236.1	14.2	500	90	120	76	2650	5842
ZT 90-10.4	226.8	13.6	481	90	120	76	2650	5842

Advantage

1.Highest reliability

For over 60 years Atlas Copco has pioneered thed evelopment of oil-free air technology. Resulting in thelargest range of air compressors and blowers within ourindustry, Through continuous research and development.we achieved a new milestone, setting the standard for airpu rity as the first manufacturer to be awarded lS0 8573-1CLASS 0 certification. CLASS0 certification means zero risk of oil contamination from our products.

2.100% oil-free compressed air

The IS0 8573-1 CLASS 0 certification means, zero risk ofour products contaminating the compressed air. This means we won't damage your company's hard-won professional reputation due to oil contamination from ouroil-free produ cts.

3.Maximum energy efficiency

The ZR/ZT's superior oil-free screw elements provide the optimum combination of high Free Air Delivery (FAD) with the lowest energy consumption.Ample sized cooling, lowpressure drops and an extremely efficient drive train resultin the highest compressor package efficiency.

4.Global presence - local service

Our aftermarket product portfolio is designed to add maximum value for our customers by ensuring the optimum availability and reliability of their compressed air equipment with the lowest possible operating costs.We deliver this complete service guarantee through our extensive service organization, maintaining our positionas leader in compressed air.

ZT55-90
