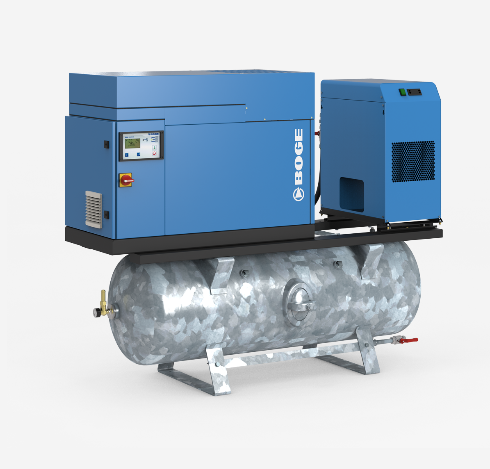

BOGE Frequency-regulated Screw Compressor with Permanent Magnet Motor Directly Coupled Oil-lubricated

Home » Products » BOGE » Screw Air Compressor » BOGE Frequency-regulated Screw Compressor with Permanent Magnet Motor Directly Coupled Oil-lubricated

This product is no longer available

BOGE Frequency-regulated Screw Compressor with Permanent Magnet Motor Directly Coupled Oil-lubricated

Share to:

BOGE Frequency-regulated Screw Compressor with Permanent Magnet Motor Directly Coupled Oil-lubricated

These compact, modular design screw compressors in the 5.5 to 11 kW performance range have a highly efficient permanent magnet motor which can combine improved performance levels with a pleasantly low noise level. All the models in this series are able to provide a considerably higher free air delivery for the same power consumption, and separating the airend and motor results in greater ease of maintenance.

Availability:

Model:
C 14 PMDR
Brand:
BOGE
Code:
8414809090

Product Description

屏幕截图 2023-08-24 133121

BOGE Screw oil free air compressor BOGE bluekat

Model: C 9 PMDR

Delivery rate: 1.19 – 7.32 m3 /min, 42 – 258,5 cfm

Pressure range: 7.5 – 13 bar, 110 – 190 psig

Power output: 30 – 45 kW, 40 – 60 HP

BOGE "IntegrateDrive" airend
Enclosed, low losses and virtually maintenance-free with optimum efficiency
Sound-optimised cooling air duct
Audible success thanks to specific insulation measures at the deflection points
Low-speed radial fan
Reduces noise and energy costs – optionally available with speed control
Elastic "SilentMount" suspension
All components are secured to the base frame with elastic mountings to ensure isolation from vibrations
Maintenance-friendly design based on the easy access principle
Access limited to 2 sides, all components readily accessible
Innovative separation technology for safe, convenient cartridge replacement
New swivel mechanism for the cover makes changing cartridges faster and banishes the risk of accidents

屏幕截图 2023-08-30 174331

Taking efficiency to a new level

MINIMAL POWER CONSUMPTION, EXTREMELY SHORT DOWNTIMES, very simple maintenance and a long life expectancy – the BOGE S-4 series has what it takes to outshine all screw compressors in the same class. From the outset the new models offer the most efficient screw compressors in their specific segment. At the heart of every S-4 is the BOGE "IntegrateDrive" airend, which was developed in-house. This features robust integrated gears or direct drive with speed control.

Practical by nature – particularly when it comes to maintenance

ALL SOUND-INSULATING PANELS ON THE S-4 CAN BE REMOVED FOR FAST ACCESS IN NEXT TO NO TIME. Regular maintenance work can be performed from just two sides: Changing the oil and separation cartridge takes place at the front of the machine, likewise the suction regulator, minimum pressure valve and oil regulator. Only the oil filter, the air filter and the primary intake air filter are changed from the side.

屏幕截图 2023-08-24 134637
