| Quantity: | |
|---|---|

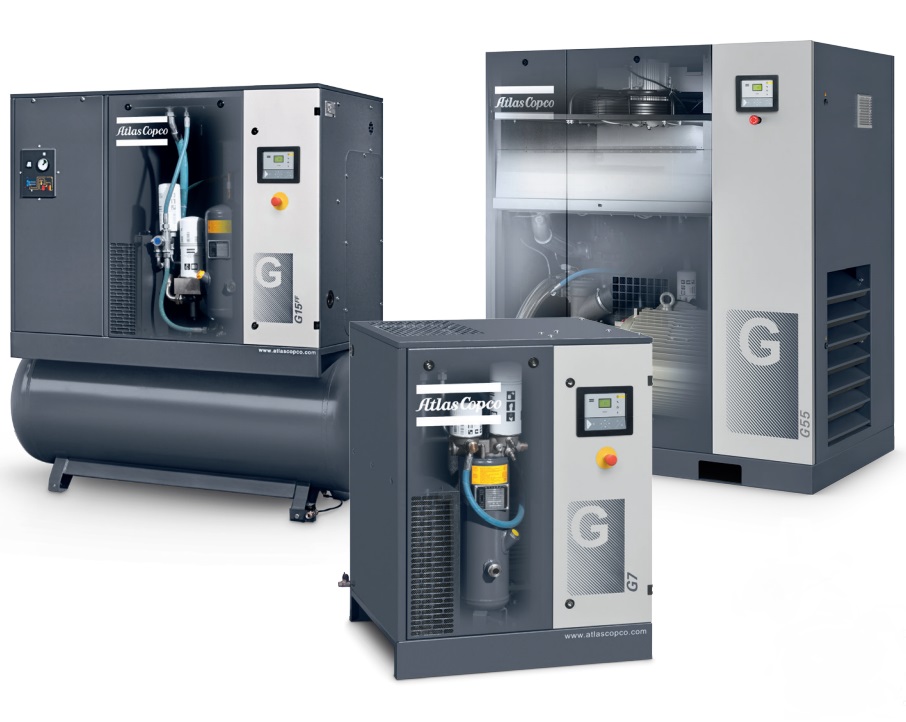

G 15
Atlas Copco
8414809090
| Place Of Origin | Wuxi City,Jiangsu Province |
| Video Factory Inspection | Video Factory Inspection |
| Machinery Test Report | Provided |
| Minimum Order Quantity | 1 |
| Packaging Details | Neutral Packaging Or Customized According To Customer Requirements |
Compressor type | Max.working | Capacity FAD* | Noise level | Weight | |||
| bar(e) | l/s | m3/min | cfm | dB(A) | kg | ||
| 50 HZ | |||||||
G 15 | 7.5 | 32.4 | 116.7 | 68.7 | 67 | 205 | |
| 10 | 29.1 | 104.8 | 61.7 | 67 | 205 | ||
| 13 | 22.8 | 82.1 | 48.3 | 67 | 205 | ||
| 60 HZ | |||||||
G 15 | 7.4 | 33.1 | 119.3 | 70.2 | 68 | 205 | |
| 9.1 | 29.6 | 106.7 | 62.8 | 68 | 205 | ||
| 10.8 | 27.3 | 98.4 | 57.9 | 68 | 205 | ||
| 12.6 | 23.1 | 83.3 | 49.9 | 68 | 205 | ||
Advantage
1.Maintenance-free drive system
·100% maintenance-free;totally enclosed andprotected against dirt and dust
·Suitable for harsh environments
·High-efficiency drive arrangement;no coupling orslippage losses.
·Standard up to 46'C/115'F and for highambientversion 55*C/131'F.
2.IE3/NEMA Premium Efficiencyelectrical motors
.lP55, insulation Class F, B rise.
.Non-drive side bearing greased for life.
.Oil-lubricated drive side bearings.
.Designed for continuous operation in harsh environments.
3.Robust spin-on oil filter
.High-efficiency; removes 300% smaller particlesthan a conventional filter.
.Integrated bypass valve with the oil filter.
4.Separate oversized oil cooler and aftercooler
.Low element outlet temperatures,ensuring longoil lifetime.
.Removal of nearly 100% of condensate byintegrated mechanical separator.
.No consumables.
.Eliminates possibility of thermal shocks in coolers.
5.Heavy-duty air intake filter
.Protects the compressor components by removing99.9% of dirt particles down to 3 microns.
.Differential inlet pressure for proactive maintenance while minimizing pressure drop.
