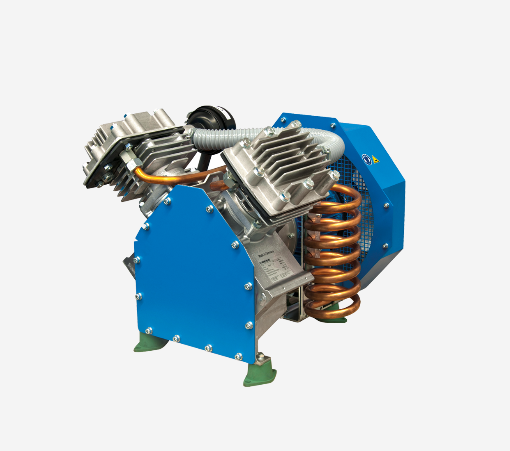

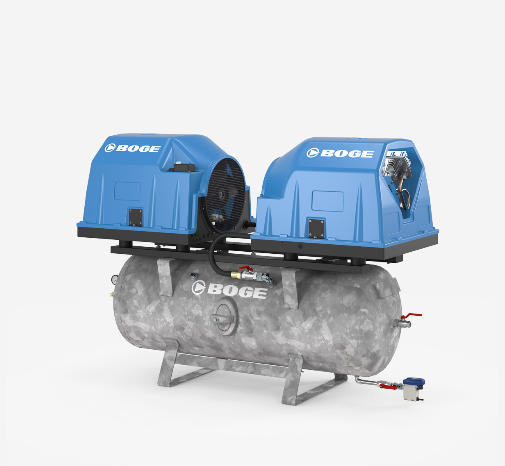

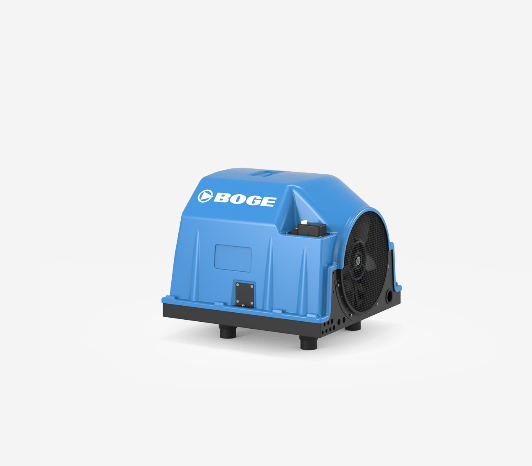

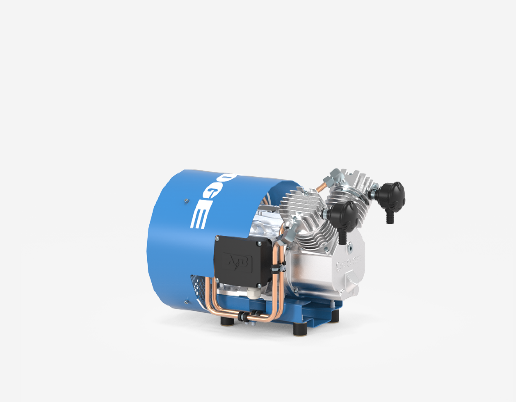

BOGE Piston compressors K series to 11 kW

All new piston compressors of the compact K product line feature an innovative oil-free actuator drive system for small capacity requirements. Ideal for the compressed air industry, which relies on completely oil-free, pressures up to 40 bar.

Availability:

Model:
K 15
Brand:
BOGE
Code:
8414809090

Product Description

屏幕截图 2023-08-24 133121

BOGE Piston air compressor

Model: K 15

BOGE "IntegrateDrive" airend
Enclosed, low losses and virtually maintenance-free with optimum efficiency
Sound-optimised cooling air duct
Audible success thanks to specific insulation measures at the deflection points
Low-speed radial fan
Reduces noise and energy costs – optionally available with speed control
Elastic "SilentMount" suspension
All components are secured to the base frame with elastic mountings to ensure isolation from vibrations
Maintenance-friendly design based on the easy access principle
Access limited to 2 sides, all components readily accessible
Innovative separation technology for safe, convenient cartridge replacement
New swivel mechanism for the cover makes changing cartridges faster and banishes the risk of accidents

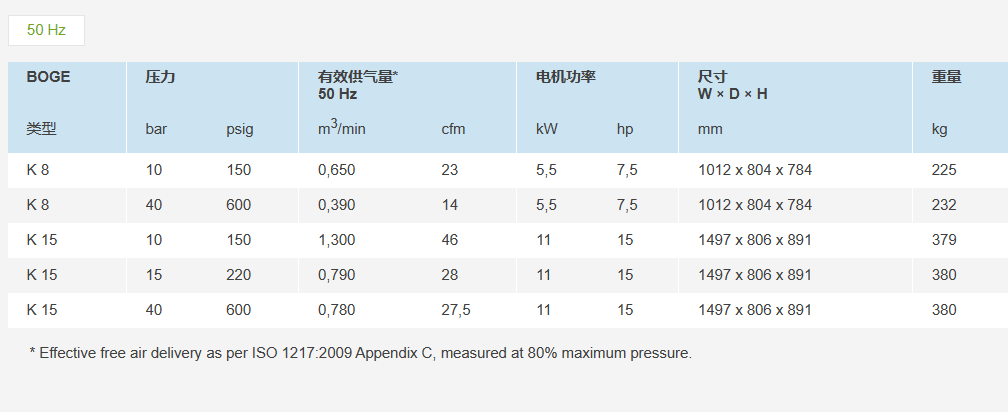

屏幕截图 2023-09-22 135515

Taking efficiency to a new level

MINIMAL POWER CONSUMPTION, EXTREMELY SHORT DOWNTIMES, very simple maintenance and a long life expectancy – the BOGE series has what it takes to outshine all screw compressors in the same class. From the outset the new models offer the most efficient screw compressors in their specific segment. At the heart of every S-4 is the BOGE "IntegrateDrive" airend, which was developed in-house. This features robust integrated gears or direct drive with speed control.

Practical by nature – particularly when it comes to maintenance

ALL SOUND-INSULATING PANELS ON THE S-4 CAN BE REMOVED FOR FAST ACCESS IN NEXT TO NO TIME. Regular maintenance work can be performed from just two sides: Changing the oil and separation cartridge takes place at the front of the machine, likewise the suction regulator, minimum pressure valve and oil regulator. Only the oil filter, the air filter and the primary intake air filter are changed from the side.

屏幕截图 2023-08-24 134637
